Welcome to Torr International, Inc.

Torr International, Inc., incorporated in 1989, is a specialist in Thin Film and Nanotechnology.

Torr’s products include Magnetron Sputtering, Electron Beam and Thermal Evaporation systems for diverse applications. These may include specimen preparation for scanning electron microscopes or research and development with metal, dielectric and organic materials.

Torr International Inc. also creates custom-built multi-target sophisticated systems for special applications, and manufactures Reactive Ion Etching systems, PECVD and Plasma Process machines for metals, dielectrics and polymers.

Torr also designs combination systems that include two or more sources, providing an economical option for today’s research environment. Torr also produces Compact Research Coaters and supplies all the accessories needed for Thin Film Deposition work.

Torr serves a worldwide market in the areas of Thin Film Deposition and Etching as well as high vacuum technology.

COMBINATIONAL DEPOSITION SYSTEM

Combinational Deposition System
Ready to ship!




The system proposed herein is a Combination Deposition System that includes Electron Beam Evaporation, Thermal Evaporation with Ion Beam Assisted Deposition sources. The chamber can accommodate up to 4”/6” diameter substrates and allows a combination of Thermal Evaporation and Electron Beam techniques to be performed without breaking vacuum. The pumping system includes Cryo based pump roughed by a Dual stage rotary pump.


Learn More...

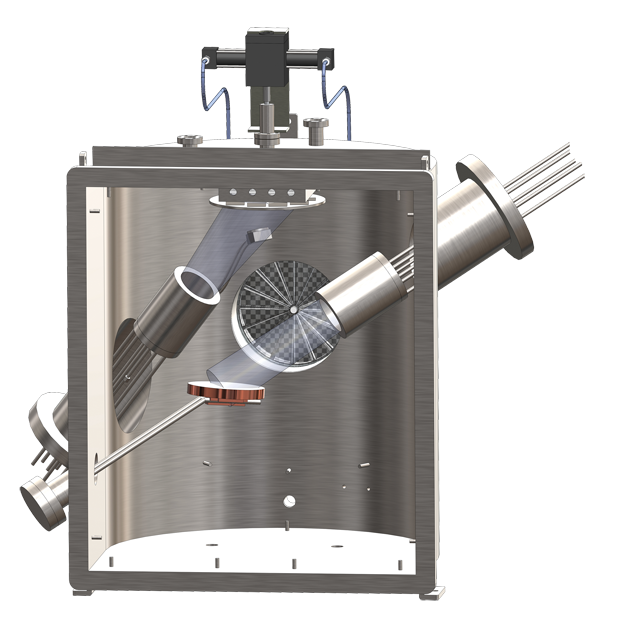

Ion-Beam Deposition System

Ion-Beam Deposition System
Ready to ship!


VERSATILE COMPACT IBD FOR FOUR, 3” TARGETS

Newly constructed Ion Beam Deposition System, featuring Water-Cooled Electro-Polished Vacuum Chamber with 1.5 X 10-6 Torr range ultimate vacuum, two large view ports & a large top lid for sample loading and easy access to all interior components with a water cooled target stage, Veeco Ion Source & Ion Tech Mps-3000 FC Power Supply, MKS Mass Flow Controller, Leybold Turbo Pump backed by an Edwards Two Stage Rough Pump, a wide range vacuum gauge & associated digital display.


Learn More...
