Reactive Ion Etcher System
Introduction
Torr International Inc. manufactures Reactive Ion Etchers designed for etching films of oxides, nitrides, polymers and more. Our two basic sizes accommodate a six- or twelve-inch wafer; we accept custom requests.
Reactive Ion Etchers can be manually or PC controlled, and can be table-top or stand-alone cabinet systems.
Description
The RIE600W-Reactive Ion Etcher is intended for an isotropic etching of materials including metal oxides, silicon and microelectronic devices. The tabletop instrument is suitable for research and development and can be used for small pilot production applications.
The full 600-watt RF power supply—with auto matching network and corrosive gases used—can produce etch rates 10°/sec for a variety of materials.
The auto RF power control ensures consistent reproduction of processes not possible with a manual RF power control.The RIE600 turbo-molecular drag pumped system can reach base pressures of 10 -5 Torr. This low vacuum eliminates impurities before starting each process. The system can be used in manual mode if new parameters are
necessary for a new etch process.
Specifications
- Compact Table Top Design for Isotropic Etching of Samples (20” x 24“ Footprint)

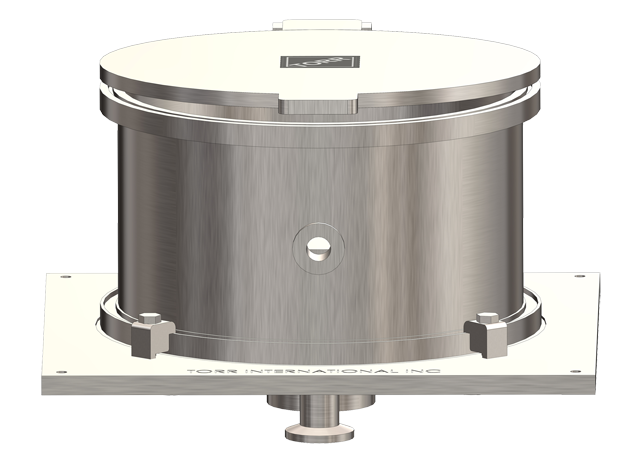

- Aluminum or Stainless Steel Chamber with Top Opening (Clamshell Style)
- Small View Port on Chamber
- Water Cooled 6” Wafer/Sample Stage (Accomodates Up to One 6” Wafer)
- Uniformity of Etching/Cleaning (Less than 5% over a 6” Wafer)
- RF Power Supply with Matching Network
- Turbo Molecular Vacuum Pumping System with Matching Dual Stage Rotary Vane Pump
- Mass Flow Controller with Digital Readout for Process Gas
- Custom Integral Gas Shower
- Vacuum Gauge with Digital Display and Readout (Measures to 0.1m Torr)
- PLC controlled system
Options
